Front Plows for Trucks

After 100+ years of doing this, we’ve probably built whatever plow you’re thinking of. In fact, our portfolio of available plows and options is far greater than what we’re able to show on this site.

And in addition to our standard plows we’ve also designed and built countless custom plows. A little taller on this side, a little heavier on that bottom angle, a little more curl to the moldboard… If you can think of it, we’ve probably done it!

Finding the right plow for your application can be overwhelming. There are a lot of choices and options available to you, so if you need help, contact us.

PLP LITERATURE RWS LITERATURE

CLICK ON MAIN IMAGE TO ENLARGE

BillingsMTFVX
Parallel Lift Plows V2.0 - Next Gen

Parallel Lifting Style Reversible Plows

Customers who have switched from traditional chain lift plows to Parallel Lift Plows insist they will never go back. The success of this product in the field led us to continue to look for ways to enhance and improve the product.

Two versions of the next generation plow are available:

  1. Parallel Lift Plow V2.0 – Heavy Duty
  2. True Float Parallel Lift Plow – Heavy Duty + Mechanical Float

Product improvements have added many benefits, here are a few:

  • Plows are significantly stronger, but not heavier
  • Easier to maintain which means the plow lasts longer
  • Plow smoothly follows the contours of the road
  • True Float allows the plow to follow the profile of the road and float over obstacles (over 23″ of float) without requiring a hydraulic float system

CLICK ON MAIN IMAGE TO ENLARGE

J Plow
Straight Plows (C-Style and J-Style Moldboards)

Straight Moldboard, no tapering at discharge end

Straight/traditional moldboards are used for a wide variety of applications and in a wide variety of plowing environments:

  • High Speed and/or Slow/Low Speed
  • DOT
  • County and/or Rural and/or City/Urban
  • Airport

CLICK ON MAIN IMAGE TO ENLARGE

StraightIsolated
Expressway Plows

Expressway Moldboard, Tapering Toward Discharge End(s) from Center

Expressway moldboards typically have a “bow tie” (or partial “bow tie”) shape to them; they’re typically – but not always – higher on the discharge ends than in the middle. Some common End-Middle-End moldboard heights are:

  • 40-40-58
  • 58-40-58
  • 53-46-53
  • 36-36-54 – Tube Table, Torsion Trip Edge Only
  • 54-36-54 – Tube Table, Torsion Trip Edge Only
  • 66-41-66 – Tube Table, Slotted Trip Edge Only

Expressway moldboards are used for a wide variety of applications and in a wide variety of plowing environments:

  • High Speed and/or Slow/Low Speed
  • DOT
  • County and/or Rural and/or City/Urban
  • Airport

CLICK ON MAIN IMAGE TO ENLARGE

Alaska
Extendable Plows

Easily extends from a standard plow width to a wider plow

Henke’s extendable plow makes your crew more efficient by giving the ability to clear more snow. This plow is easy to operate and control with a single joystick.

Designed with safety in mind, the plow is highly visible from inside the cab. With only one blade to monitor, problems associated wtih wings are eliminated:

  • Visibility for the operator and traveling public
  • Wings take more time to lower and raise
  • Wings can cause damage to the truck and body

It’s also quicker and easier to change your truck from season to season since you only need to remove one front plow.

CLICK ON MAIN IMAGE TO ENLARGE

Extendable
Folding V-Plows - FVX Plows

Folding V-Plow for Trucks adjust to Scoop, Vee, or Reversible, for maximum versatility

The Henke FVX is ideal for urban/city plowing, especially for areas with lots of cul-de-sacs and roundabouts.

  • 41″ tall moldboard
  • Moldboard Lengths: 10′, 11′, 12′, 14′
  • Cushion valves to relieve plow power reversing cylinders
  • Henke parallel lift system or chain lift
FVX JCraft

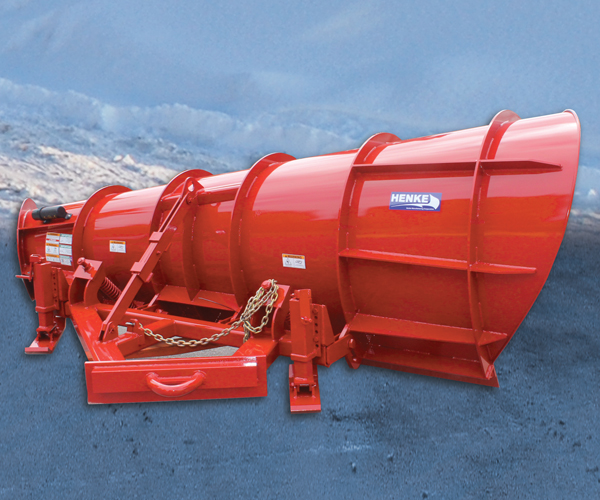

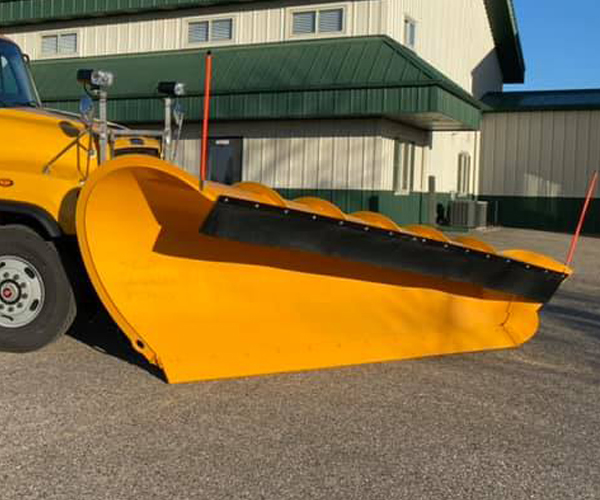

Funnel Plows / One-Way Plows

Designed for throwing snow as far as possible from the roadway

Henke funnel / one-way plows in in several sizes, the following intake/discharge heights are the most common:

  • 30-47
  • 30-60
  • 39-52
  • 40-65

Funnel / One-Way moldboards are used for a wide variety of applications and in a wide variety of plowing environments:

  • High speed and/or low speed
  • DOT
  • County and/or rural
  • Airport
IdahoDOT

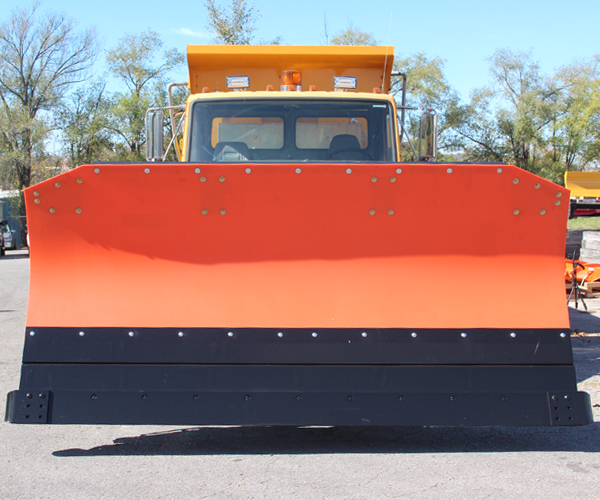

Poly Flex Plows

Transforms while in operation: right or left discharge, tall front push or snow shield curl

When you need to combine the advantages of a one-way plow with a reversible plow, Henke’s Poly Flex Plow is the answer. This highly adjustable plow, can be manipulated to handle multiple snow clearing challenges.

  • Hydraulically adjustable on the fly
  • UHMW Polymer moldboard will not crack at low temperatures or on impact
  • Torsion trip edge is easy to adjust and maintain
  • Dual reversing cylinders
  • Swivel features for follow road contours
PolyFlex3
